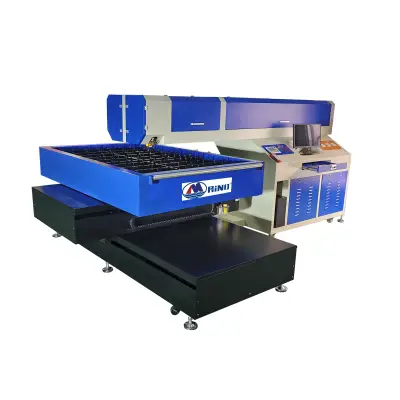

JS-SD1218 CO2 Laser Cutting Machine

JS-SD1218 CO2 Laser Cutting Machine JS-SD1218 CO2 Laser Cutting Machine
JS-SD1218 CO2 Laser Cutting Machine

l Parameters:

Cutting machine bodyAdopt steel structure (high-strength stable machine tool, no deformation or distortion during long-term operation)
LaserSealed CO2 laser, wavelength 10.6um low-order mode (in line with GB11748-89 standard)
Transmission modeImported precision screw drive
Laser power and power consumptionMaximum output power 650 watts, output power range 1 watt to 600 watts, power consumption 3 kWh per hour
Cutting material and thicknessWooden boards, PVC boards, acrylic, and most other non-metallic materials.
Working stroke1200*1800MM
Machine size4500MM*4000MM*1600MM
Ambient temperature*21℃~40℃
Cooling water temperature*35℃~30℃
Cooling waterPure water
Protective gasN2 or dry oil-free air
Relative humidity*4≤80％
Power supply*5Single-phase 220V±5％ 50Hz 30A
Energy regulation1~100％ manual adjustment
Memory capacityThe machine has its own storage, USB connection, and can be used offline
Laser intensity control100 levels can be divided
Cutting accuracy±0.05mm
Cutting speed0-100mm/min software setting
Positioning accuracy≤0.05mm
Machine weight2000kg
Operation controlLCD display, Chinese and English menu, light touch buttons
Control softwareLaser precision die cutting system (Chinese and English version)




l Machine list:

No.NameQtyUnit
1Sealed CO2 laser1set
2Guide rails imported from Taiwan4strip
3Screw rods imported from Taiwan2strip
5Servo drive motor2set
6Control software1set
7Power supply4set
8Reflector1table
9Focusing mirror1piece
10Circulating constant temperature cooling water tank1piece
11Exhaust fan, exhaust pipe1table
12Machine parts1set
13Computer1set
14Electric appliances1table
15Remote control1set
16Three-stage filter1piece
